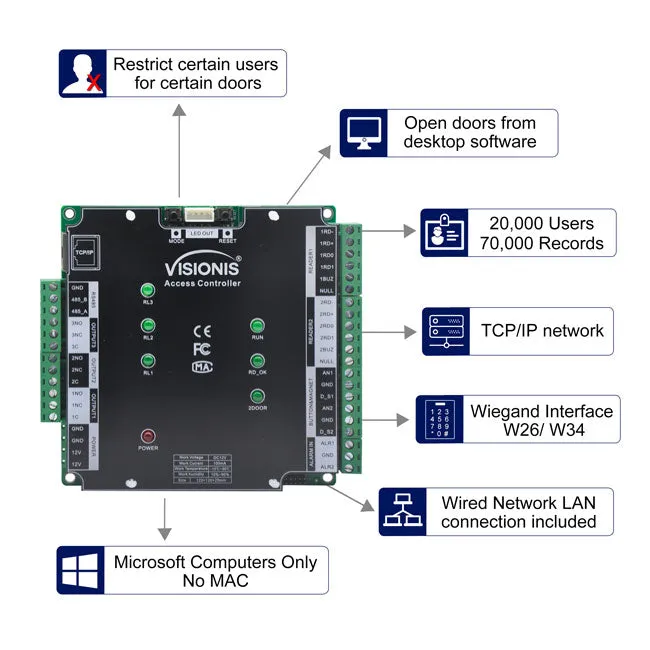

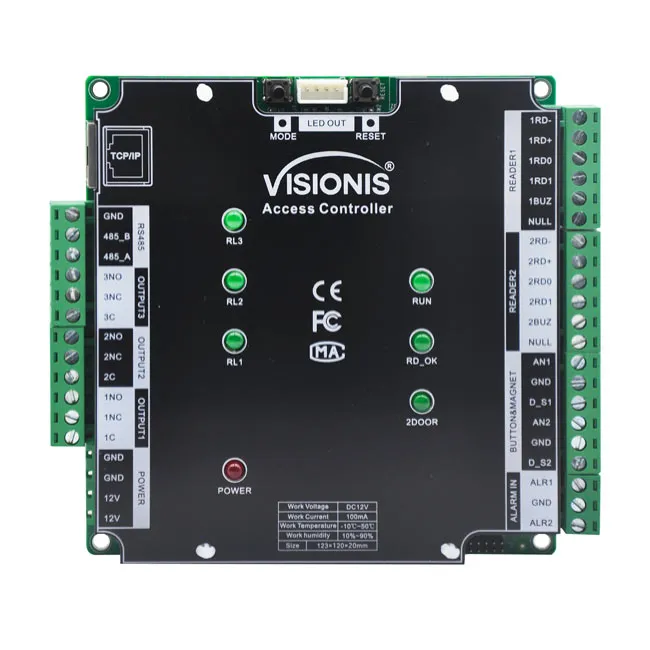

Name: Visionis VIS-AXESS-2D-DLX-PCB (Version 2.0) - Two Doors Network Access Control PCB Controller Board TCP IP Wiegand With Desktop Software 20,000/70,000 User Record
SKU: 508528

Features

Arm 7 processor, RTOS system, new PCB circuit design
Advanced access control function, including multi-card, first card, interlock and anti-passback etc.
Multiple authentication mode, it supports card, password, card code and fingerprint.
TCP/IP communication mode, there is 5 SOCKET port.
Optical coupling isolation protection, more stable
Record capacity can be extended, it can be 130.000pcs
Alarm linkage and relay self-defined.

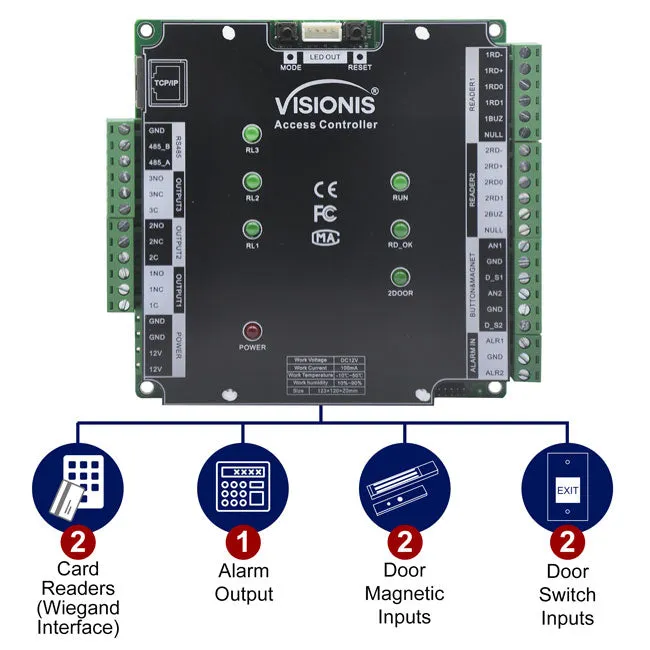

Hardware Design

New design and new integration, it supports TCP/IP communication mode and have 5 SOCKET port.
Large Capacity FLASH
Multiple output and input Protection
High/low temperature resistant design -20°C to 65°C (-4°F~ 149°F)

Systemic Linkage Function

Abundant ports are reserved for future usage and add to multiple events linkage, it supports illegal card alarm linkage, alarm linkage to open door
etc.

Multiple Authentication Management

Professional management function, manager can manage person access more efficiently and safe.
Cancel normal open by card
Multiple authentications
Card failure and activate time.
Access time segment setup

Economic Access C Management

This product can ensure the cost of project is low, but device access control function is perfect.

First Card
Multi-card Open
Anti-passback
Remote Control
Multi-door interlock
Threaten Code
Normal Open Automatically

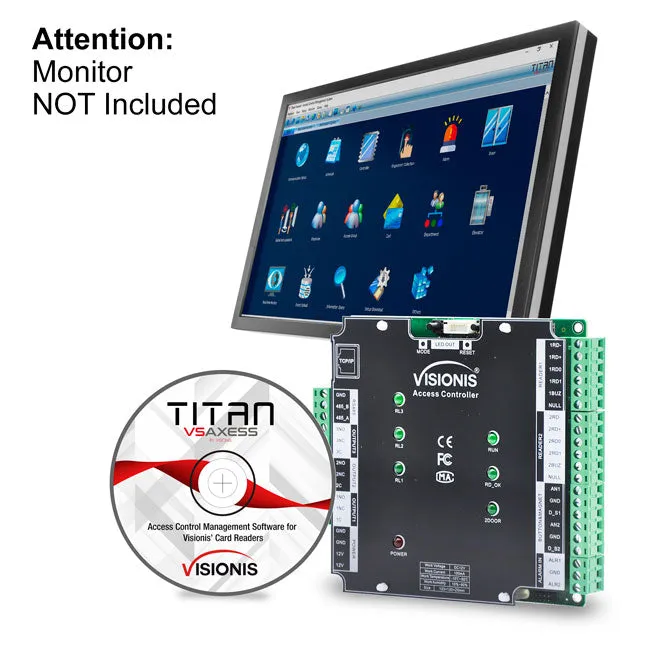

Powerful Software

When access controller work with TITAN VSAxess software, it can achieve more complex security function. Such as, access data search, employee shift, attendance statistics.

Access Control and video device linkage
Attendance
On-line access control
Real-time Remote monitoring

Attention:

IMPORTANT: These PCB Controller Board (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
Software USB is 100% included in this product.
The software is not compatible with MAC computers, only with Microsoft.
